I-LK-NY20E K-Band Optical Transmitter
- I-Ultra-wideband (ngcono kune-25GHz)
- I-DWDM
- High-Dynamic-Range
- Amandla aphezulu okukhiphayo
- Umsindo Wesihlobo Esiphansi (RIN)
- Izindlela zokusebenza eziningi ziyatholakala
- Izinga lokushisa lekesi elisebenzayo: (-40℃～70℃)
- Amandla Okukhipha Amandla Afika Ku-10mW
Product Incazelo
I-LK-NY20E K-Band Optical Transmitter iyisisetshenziswa sokuxhumana esiyinkimbinkimbi esihlanganisa umthombo wokukhanya we-laser onamandla amakhulu, i-ultra-wideband Lithium Niobate (LiNbO3) intensity modulator, i-voltage stabilization conversion circuit, isekethe yokushayela, nokuqapha kanye nesekhethi yezinkomba.
Lesi sithumeli siklanyelwe ukukhipha amasiginali okukhanya ashintshiwe kumaza wamaza ahambisana nezinga le-International Telecommunication Union (ITU) ye-dense wavelength division multiplexing (DWDM). Ine-bandwidth ye-modulation eyedlula i-25GHz, evumela ukudluliswa kwedatha ngesivinini esikhulu. Idivayisi iyakwazi ukuletha amandla okukhanya okukhiphayo afika ku-10mW, ngokuzinza okuhle kakhulu kubude beza beza bokukhanya.
I-LK-NY20E Series isebenza ku-voltage eyodwa yamandla kagesi, iqinisekisa ukusebenza okuzinzile kulo lonke ibanga likagesi ukusuka ku-+12V ukuya ku-+36V. Ngaphezu kwalokho, isidlulisi sihlanganisa umsebenzi wenkomba oqinisekisa ukusebenza okuvamile kwakho kokubili ukunikezwa kwamandla kanye nokuphuma kwamandla okukhanya, okuhlinzeka ngenkomba ethembekile yesimo sokuqapha nokugcinwa kwesistimu.
Imininingwane Technical
Ukulinganisa Okuphelele
| Ipharamitha | uphawu | Min. | Uhlobo. | Max. | Unit |
| lokushisa Isitoreji | TSTG | -55 | + 25 | + 85 | ℃ |
| Ukusebenza lokushisa | TC | -40 | + 25 | + 70 | ℃ |
| Amandla wokufaka we-RF1 | Pin | - | + 15 | + 25 | dBm |
| voltage | Vin | + 12 | + 12 | + 36 | V |
(1) Imodi yokusebenza yegagasi eliqhubekayo (CW).
Ukucaciswa kokubona nogesi (TC = 22±3℃)
| Ipharamitha | uphawu | Min. | Uhlobo. | Max. | Unit | Note |
| nombono | λ | 1527.99 | - | 1563.05 | nm | I-ITU Standard |
| Imvamisa (3dB) | f3dB | 2 | - | 25 | I-GHz | - |
| Amandla okukhipha ukukhanya | P | 10 | - | - | mW | - |
| Umsindo Wokuqina Okuhlobene | I-RIN | - | - | -155 | dBc/Hz | - |
| Ukubuyisela ukulahlekelwa (VSWR) | I-VSWR | - | - | 2.5 | - | - |
| Okokufaka okungu-1 dB Ukucindezelwa | - | + 17 | - | - | dBm | - |
Ukunikezwa kwamandla (TC = 22±3℃)
| Ipharamitha | Min. | Uhlobo. | Max. | Unit |
| voltage | + 12 | + 12 | + 36 | V |
| yamanje(I-2) | 0.4 | 0.7 | 1.2 | A |
(2)Isimo sokuhlola:Vin=+12V.

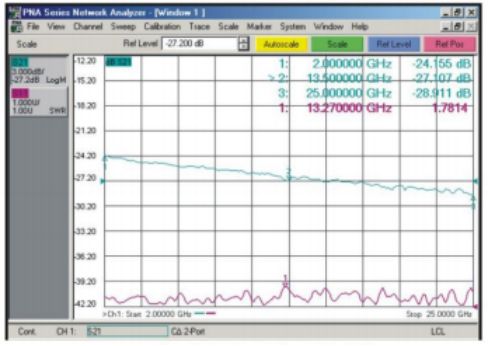

● Ijika Elivamile Lempendulo
Umfanekiso 1 LK-NY20E K-Band Transmitter Ijika Elivamile Lempendulo
● Iyunithi yobukhulu:mm[intshi]
Umfanekiso 2 LK-NY20E Transmitter Dimension
Isixhumi se-RF: SMA
Isixhumi samandla: J30J-9-ZKP
● Iphinikhodi yokunikezwa kwamandla
| Ipharamitha | Incazelo | ||||||||
| Pin | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
| voltage | Vin | NC | I-GND | NC | |||||
● Ulwazi Lwe-oda
Ishidi 1:
| uphawu | Incazelo |
| 20E | I-K-band Transmitter yemodulation yangaphandle |
Ishidi 2:
| Ikhodi | Imvamisa(THz) | I-Wavelength (nm) | Ikhodi | Imvamisa(THz) | I-Wavelength (nm) | |
| C15 | 191.5 | 1565.50 | C39 | 193.9 | 1546.12 | |
| C16 | 191.6 | 1564.68 | C40 | 194 | 1545.32 | |
| C17 | 191.7 | 1563.86 | C41 | 194.1 | 1544.53 | |
| C18 | 191.8 | 1563.05 | C42 | 194.2 | 1543.73 | |
| C19 | 191.9 | 1562.23 | C43 | 194.3 | 1542.94 | |
| C20 | 192 | 1561.41 | C44 | 194.4 | 1542.14 | |
| C21 | 192.1 | 1560.61 | C45 | 194.5 | 1541.35 | |
| C22 | 192.2 | 1559.79 | C46 | 194.6 | 1540.56 | |
| C23 | 192.3 | 1558.98 | C47 | 194.7 | 1539.77 | |
| C24 | 192.4 | 1558.17 | C48 | 194.8 | 1538.98 | |
| C25 | 192.5 | 1557.36 | C49 | 194.9 | 1538.19 | |
| C26 | 192.6 | 1556.55 | C50 | 195 | 1537.4 | |
| C27 | 192.7 | 1555.75 | C51 | 195.1 | 1536.61 | |
| C28 | 192.8 | 1554.94 | C52 | 195.2 | 1535.82 | |
| C29 | 192.9 | 1554.13 | C53 | 195.3 | 1535.04 | |
| C30 | 193 | 1553.33 | C54 | 195.4 | 1534.25 | |
| C31 | 193.1 | 1552.52 | C55 | 195.5 | 1533.47 | |
| C32 | 193.2 | 1551.72 | C56 | 195.6 | 1532.68 | |
| C33 | 193.3 | 1550.92 | C57 | 195.7 | 1531.9 | |
| C34 | 193.4 | 1550.12 | C58 | 195.8 | 1531.12 | |
| C35 | 193.5 | 1549.32 | C59 | 195.9 | 1530.33 | |
| C36 | 193.6 | 1548.51 | C60 | 196 | 1529.55 | |
| C37 | 193.7 | 1547.72 | C61 | 196.1 | 1528.77 | |
| C38 | 193.8 | 1546.92 | C62 | 196.2 | 1527.99 |
Ishidi 3:
| uphawu | Incazelo |
| PM1 | I-Panda Fiber |
| PM2 | I-Elliptical fiber |
Ishidi 4:
| uphawu | Incazelo |
| CM | Ukwenza ngokwezifiso komsebenzisi |
| A | I-FC / APC |
Izicelo
I-Antenna kanye neRadar
ISatcom
Isistimu yokulwa ne-elekthronikhi
I-Analog RF ixhumanisa ukudluliswa/ukubambezeleka
I-Broadband Wireless Ukuxhumana
Isiteshi sesisekelo sokuxhumana kwamaselula
Isistimu ye-DWDM
Amasistimu e-radar asabalalisiwe
