I-LK-D-SS-18-T Series Optical Delay Line & Optical Simulator
- Umkhawulokudonsa ukuya ku-18GHz
- Ububanzi obuguquguqukayo obuphezulu
- Uhlelo lokusebenza olubanzi lokushisa
- Impendulo ye-amplitude ephansi
- Ukubambezeleka kwesikhathi okwenziwe ngokwezifiso
Product Incazelo
Isebenzisa ubuchwepheshe obusezingeni eliphezulu be-Microwave-Photonics, umugqa wokulibaziseka we-LK-D-SS-18-T wochungechunge kanye nesifanisi esibonakalayo sinikeza ukusebenza okungenakuqhathaniswa ezinhlobonhlobo zezinhlelo zokusebenza, okubandakanya ukuhlolwa kwe-radar, ukucubungula amasignali, ukusebenza kwe-antenna yezigaba, i-antenna. ukulingisa, kanye nokuhlaziywa komsindo wesigaba. Lolu hlelo oluthuthukisiwe ludizayinelwe ukuthi lusebenze ngaphandle komthungo kuwo wonke amabhendi e-S/C/X/Ku, abonakala ngokulahleka okuncane kokufaka, ububanzi obuguquguqukayo obubanzi, ukuhlukaniswa okuqinile kazibuthe kagesi, kanye nekhono lokuphatha amasiginali angabonakali kathathu wokuhamba.
Imininingwane Technical
Izici zikagesi / ze-Optical
| Ipharamitha | Amanani wepharamitha | Unit | esasizizwa | ||
| min | Ngiyazifela | Max | |||
| imvamisa Range | 2 | - | 18 | I-GHz | |
| I-Amplitude Flatness | - | ± 2 | ± 2.5 | dB | |
| Isikhathi sokuphela | 0.01 | - | 150 | us | ngezifizo |
| Libazisa Ukunemba | -5‰ | - | +5‰ | - | |
| Ukufelwa kokufakiwe | 0 | 20 | 30 | dB | ngezifizo |
| Ukufaka i-VSWR | - | 1.8 | 2.2 | - | |
| Okukhipha i-VSWR | - | 1.8 | 2.2 | - | |
| Impedance | - | 50 | - | Ω | |
| Okokufaka okungu-1 dB Ukucindezelwa | - | + 13 | + 17 | dBm | |
| I-Spurious Signal Rejection Ratio | 60 | - | - | dBc | |
| Umdwebo Womsindo | - | 50 | 60 | dB | 5us, 25℃ |
| Sebenzisa izinga lokushisa | -55 | - | + 85 | ℃ | Bona Ulwazi Loku-oda |
| Isitoreji Temperature | -55 | - | + 85 | ℃ | |
| Ukubambezeleka Okuhlobene vs. Izinga Lokushisa | - | - | 7 | ppm/℃ | |
| Ukulahlekelwa Kokufaka Kuqhathaniswa Nokushisa | - | 2 | 4 | % / ℃ | |
Incazelo yesixhumi & Ukunikezwa kwamandla
| Pin | 1, 2 | 3, 4, 5 | 6, 7 | 8, 9 |
| voltage | NC | I-GND | + 12V | NC |
| Isilinganiso samanje | - | - | 0.3 | - |
| UMax Wamanje | 1 |

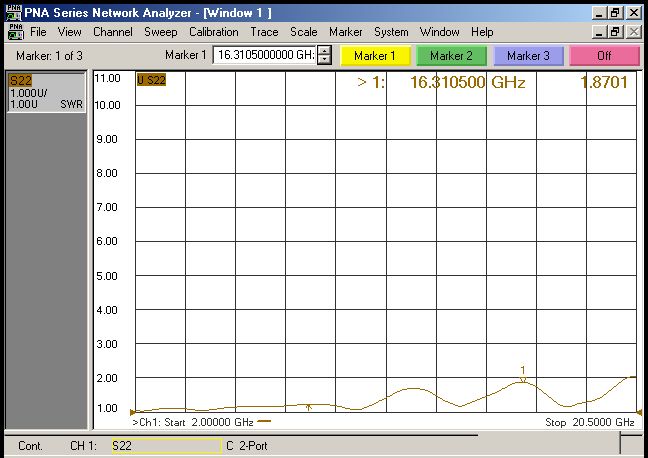

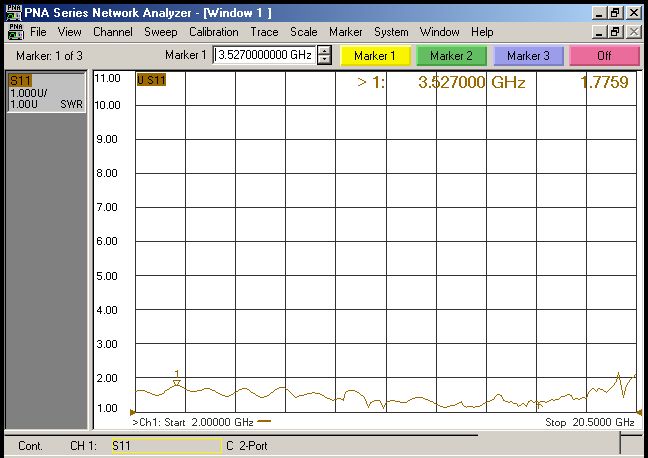

Amajika Okuphendula Ajwayelekile (25℃)
Ubukhulu namaphini ( Iyunithi: mm[inch])
Isixhumi se-RF: SMA-K (Esenziwe ngokwezifiso)
Isixhumi se-DC:DE-9PS (Esenziwe ngokwezifiso)
| Uhlobo lomkhiqizo | I-LK-D-SS-18-TG | esasizizwa | |||||
| Ukubambezeleka kwesikhathi (thina) | 8 | 20 | 35 | 50 | 60 | 80 | Standard |
| X (mm) | 37 | 50 | 65 | 80 | 90 | 110 | |
| Uhlobo lomkhiqizo | I-LK-D-SS-18-TP | esasizizwa | |||||
| Ukubambezeleka kwesikhathi (thina) | 8 | 35 | 60 | 80 | 110 | 150 | Compact |
| X (mm) | 20 | 45 | 55 | 65 | 78 | 95 | |
Ukuhlela Ulwazi
| Uhlobo lomkhiqizo | Packages | Amazinga Ekhwalithi | Sebenzisa izinga lokushisa | Isitoreji Temperature |
| I-LK-D-SS-18-TGI | Standard | Izinga lemboni | -20 ℃ ~ 70 ℃ | -40 ℃ ~ 80 ℃ |
| I-LK-D-SS-18-TGM | Ibanga eliphakathi | -40 ℃ ~ 70 ℃ | -50 ℃ ~ 80 ℃ | |
| I-LK-D-SS-18-TGS | Ibanga elikhethekile | -55 ℃ ~ 85 ℃ | -55 ℃ ~ 85 ℃ | |
| I-LK-D-SS-18-TPI | Compact | Izinga lemboni | -20 ℃ ~ 70 ℃ | -40 ℃ ~ 80 ℃ |
| I-LK-D-SS-18-TPM | Ibanga eliphakathi | -40 ℃ ~ 70 ℃ | -50 ℃ ~ 80 ℃ | |
| I-LK-D-SS-18-TPS | Ibanga elikhethekile | -55 ℃ ~ 85 ℃ | -55 ℃ ~ 85 ℃ |
Izicelo
Ukuhlolwa kwerada/ukulinganisa
Ukuguqulwa kwesignali
Impi kagesi
Uhlu lwezimpondo ezimisiwe
Ukulingiswa kwe-antenna
